安装vulkan

bashsudo apt-get install libvulkan1
sudo apt-get install vulkan-utils
或者
sudo apt install vulkan-tools
vulkaninfo

如果不存在，请尝试创建包含以下内容的文件：/usr/share/vulkan/icd.d/nvidia_icd.json

{ “file_format_version” : “1.0.0”, “ICD”: { “library_path”: “libGLX_nvidia.so.0”, “api_version” : “1.2.155” } }

测试安装

python -m mani_skill.examples.demo_random_action

import gymnasium as gym import mani_skill.envs

env = gym.make( “PickCube-v1”, # there are more tasks e.g. “PushCube-v1”, “PegInsertionSide-v1”, … num_envs=1, obs_mode=“state”, # there is also “state_dict”, “rgbd”, … control_mode=“pd_ee_delta_pose”, # there is also “pd_joint_delta_pos”, … render_mode=“human” ) print(“Observation space”, env.observation_space) print(“Action space”, env.action_space)

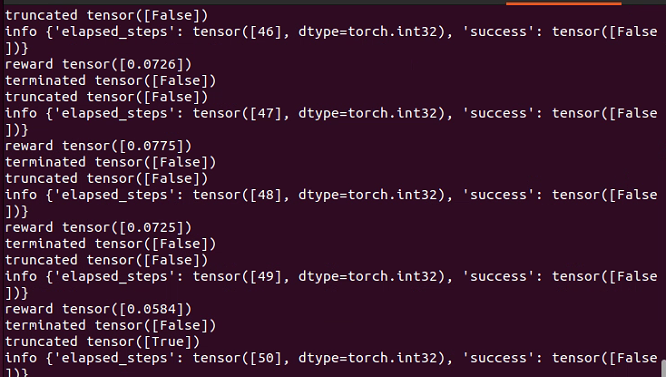

obs, _ = env.reset(seed=0) # reset with a seed for determinism done = False while not done: action = env.action_space.sample() obs, reward, terminated, truncated, info = env.step(action) done = terminated or truncated env.render() # a display is required to render env.close()

run headless / without a display

python -m mani_skill.examples.demo_random_action -e PickCube-v1

run with A GUI and ray tracing

python -m mani_skill.examples.demo_random_action -e PickCube-v1 --render-mode=“human” --shader=“rt-fast”

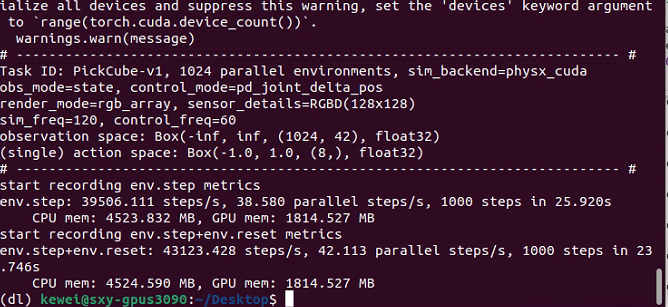

python -m mani_skill.examples.benchmarking.gpu_sim --num-envs=1024

并行真的超快

rendering RGB + Depth data from all cameras

python -m mani_skill.examples.benchmarking.gpu_sim --num-envs=64 --obs-mode=“rgbd”

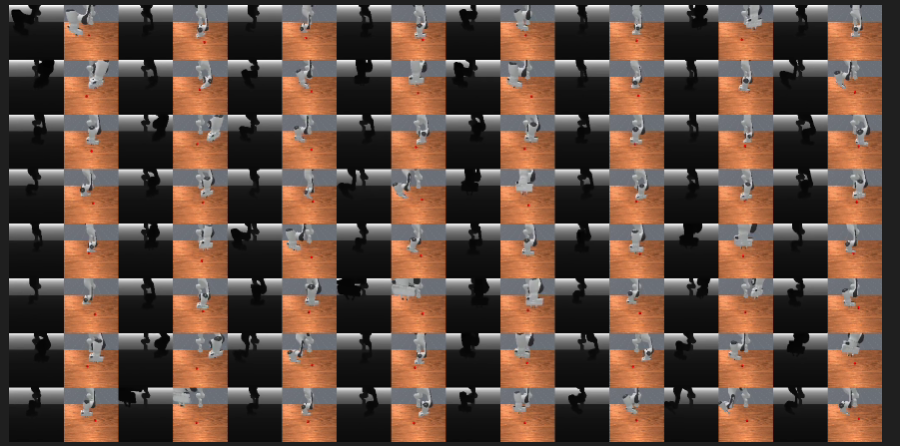

directly save 64 videos of the visual observations put into one video

python -m mani_skill.examples.benchmarking.gpu_sim --num-envs=64 --save-video

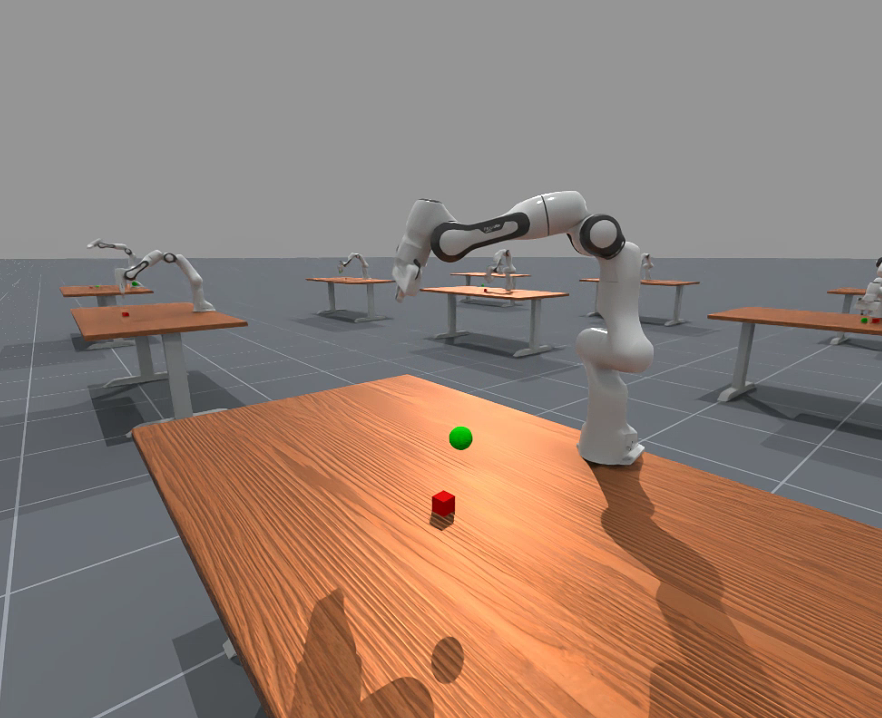

import gymnasium as gym import mani_skill.envs

env = gym.make( “PickCube-v1”, obs_mode=“state”, control_mode=“pd_joint_delta_pos”, num_envs=16, parallel_in_single_scene=True, viewer_camera_configs=dict(shader_pack=“rt-fast”), ) env.reset() while True: env.step(env.action_space.sample()) env.render_human()

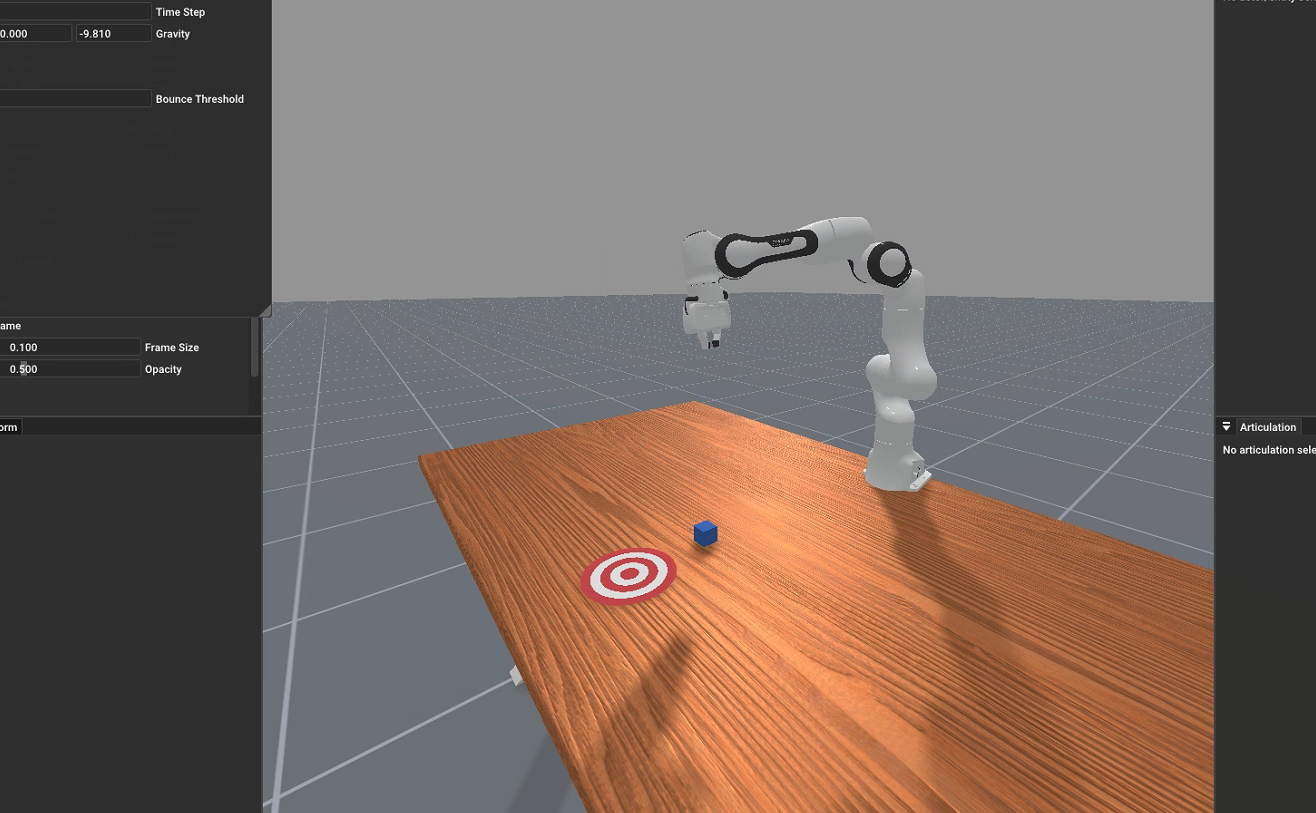

python -m mani_skill.examples.demo_random_action -e PushCube-v1 -b gpu --render-mode human --seed 42

生成随机模拟

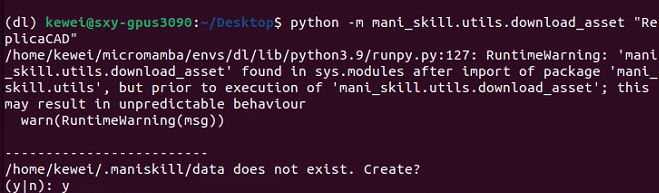

默认下载数据的路径

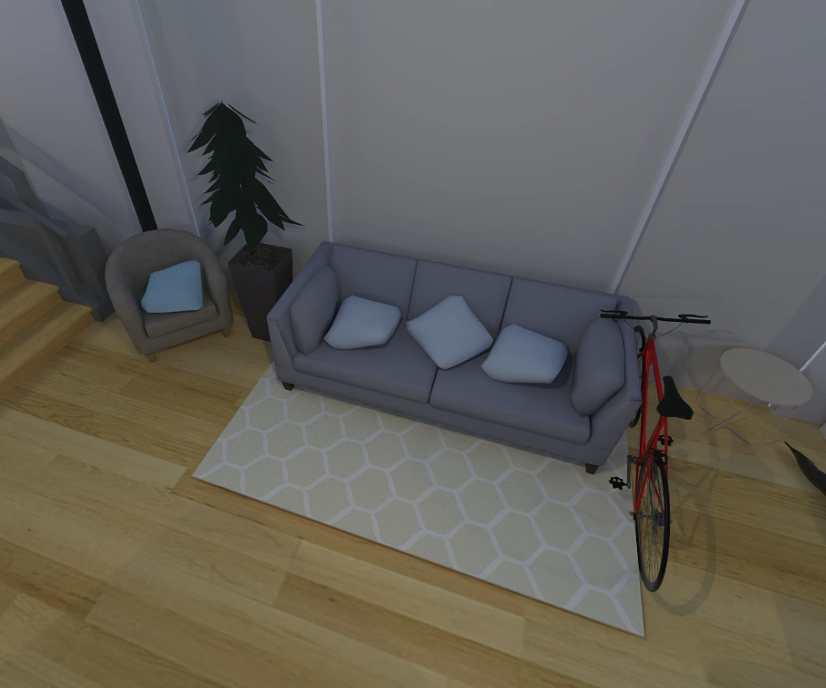

python -m mani_skill.utils.download_asset “ReplicaCAD”

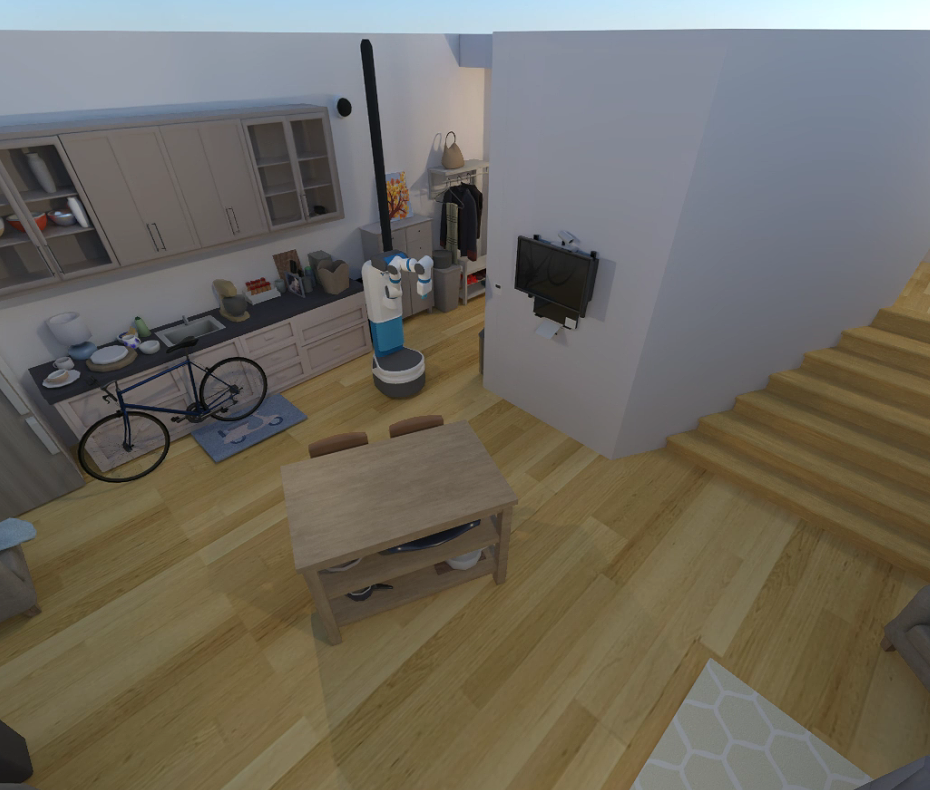

python -m mani_skill.examples.demo_random_action -e “ReplicaCAD_SceneManipulation-v1”
–render-mode=“rgb_array” --record-dir=“videos”

python -m mani_skill.examples.demo_random_action -e “ReplicaCAD_SceneManipulation-v1”
–render-mode=“human” # run with GUI

python -m mani_skill.examples.demo_random_action -e “ReplicaCAD_SceneManipulation-v1”
–render-mode=“human” --shader=“rt-fast” # faster ray-tracing option but lower quality

python -m mani_skill.examples.demo_random_action -e “ReplicaCAD_SceneManipulation-v1”
–render-mode=“human” --shader=“rt”

比较推荐中等分辨率

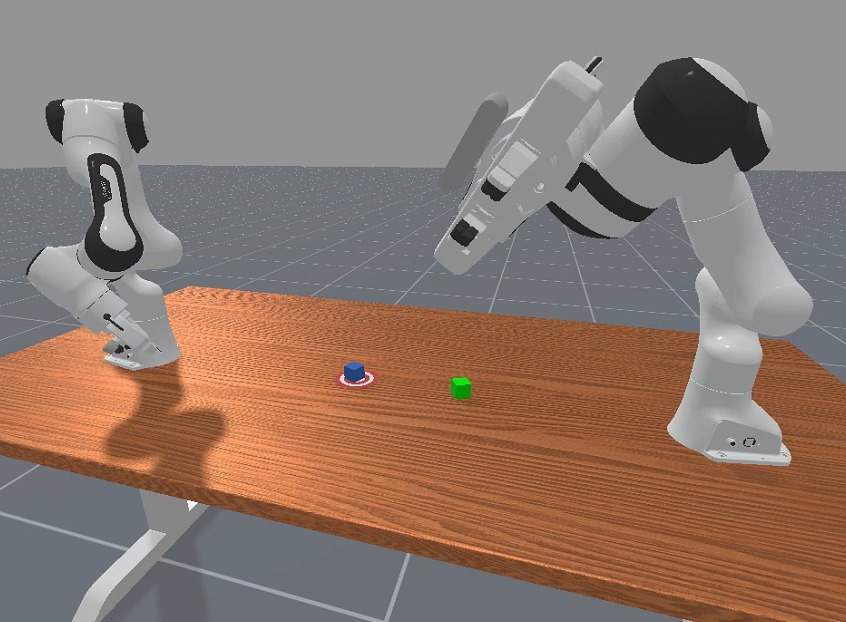

python -m mani_skill.examples.demo_random_action -e “TwoRobotStackCube-v1”
–render-mode=“human”

python -m mani_skill.examples.demo_random_action -e “RotateValveLevel2-v1”
–render-mode=“human”

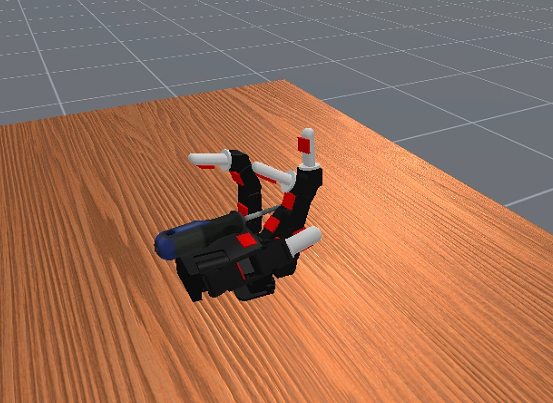

灵巧手

python -m mani_skill.examples.demo_random_action -e “RotateSingleObjectInHandLevel3-v1”
–render-mode=“human”

模拟触觉

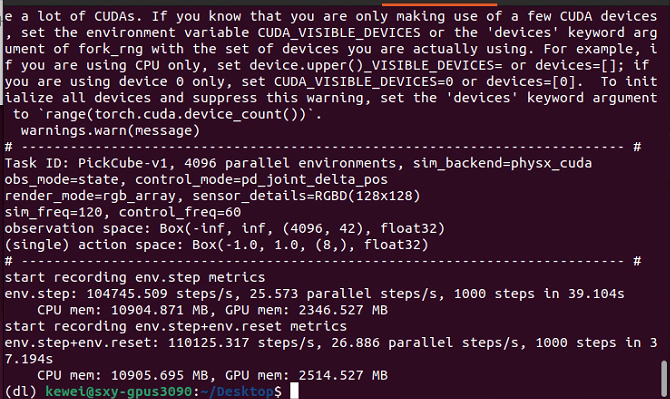

要使用 4096 个并行任务对 PickCube-v1 任务上的 GPU 模拟进行基准测试，可以运行

python -m mani_skill.examples.benchmarking.gpu_sim -e “PickCube-v1” -n 4096

速度非常之快

要保存代理获得的视觉观察视频（在本例中只有 rgb 和深度），可以运行

python -m mani_skill.examples.benchmarking.gpu_sim -e “PickCube-v1” -n 64
–save-video --render-mode=“sensors”

它应该运行得相当快！（4090 上 3000+ fps，可以增加环境数量以获得更高的 FPS）。可以更改--render-mode="rgb_array"为从更高质量的相机进行渲染。

要尝试各种并行模拟功能，可以运行

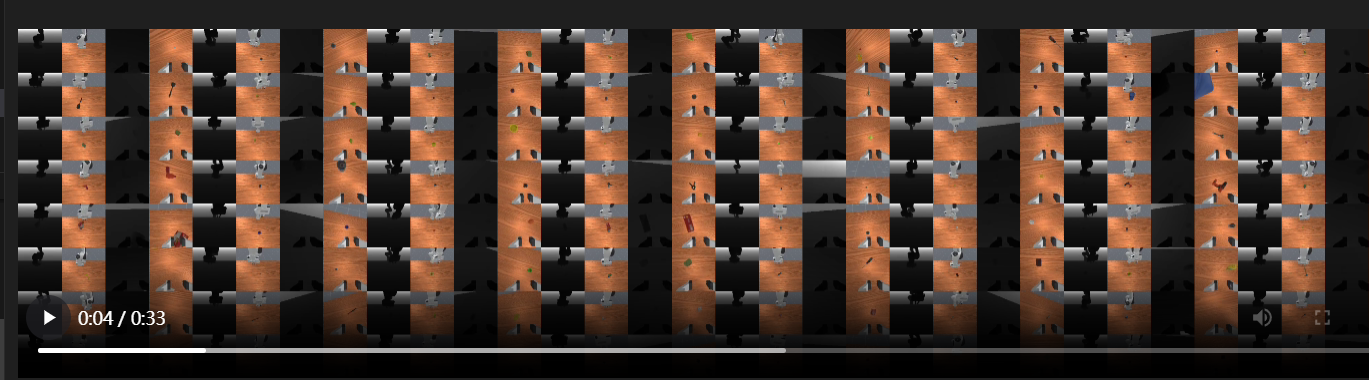

python -m mani_skill.examples.benchmarking.gpu_sim -e “PickSingleYCB-v1” -n 64
–save-video --render-mode=“sensors”

同时训练抓取不同的物体

python -m mani_skill.examples.benchmarking.gpu_sim -e “OpenCabinetDrawer-v1” -n 64
–save-video --render-mode=“sensors”

显示了在每个并行环境中具有不同对象和关节的两个任务。以下是 OpenCabinetDrawer 任务的一个示例。

更多详细信息和性能基准测试结果可在本页面找到

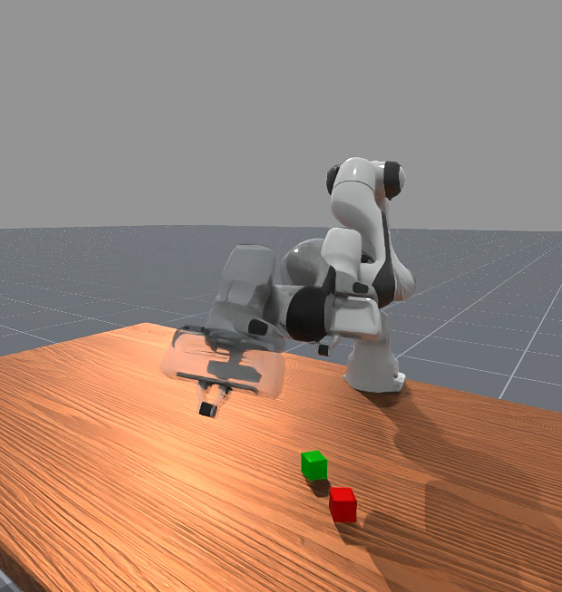

交互控制#

单击+拖动远程操作：

简单的工具，可以单击并拖动 Panda 机械臂的末端执行器来解决各种任务。只需单击并拖动，按“n”移动到拖动到的位置，“g”切换打开/关闭抓取，然后重复。按“q”退出并保存结果视频。

python -m mani_skill.examples.teleoperation.interactive_panda -e “StackCube-v1”

有关如何使用此工具（用于演示和数据收集）的更多详细信息，请参阅主页。下面的视频显示了系统的运行情况。

关于这个，有一个bug，我提了discord

python -m mani_skill.examples.teleoperation.interactive_panda -e “StackCube-v1” Traceback (most recent call last): File “/home/kewei/micromamba/envs/dl/lib/python3.9/runpy.py”, line 197, in _run_module_as_main return _run_code(code, main_globals, None, File “/home/kewei/micromamba/envs/dl/lib/python3.9/runpy.py”, line 87, in _run_code exec(code, run_globals) File “/home/kewei/micromamba/envs/dl/lib/python3.9/site-packages/mani_skill/examples/teleoperation/interactive_panda.py”, line 11, in from mani_skill.examples.motionplanning.panda_stick.motionplanner import \ ModuleNotFoundError: No module named ‘mani_skill.examples.motionplanning.panda_stick’ hi could anyone help me with this problem?
[17:36]

ok well I have solved it. Just install from github not pypi helped me out
kewei_—_ 今天17:43

it might be a issue in example code. the right should be

from mani_skill.examples.motionplanning.panda.motionplanner_stick import PandaStickMotionPlanningSolver

运动规划解决方案#

我们为熊猫手臂在某些任务上提供了运动规划解决方案/演示，现在可以尝试并使用以下内容记录演示：

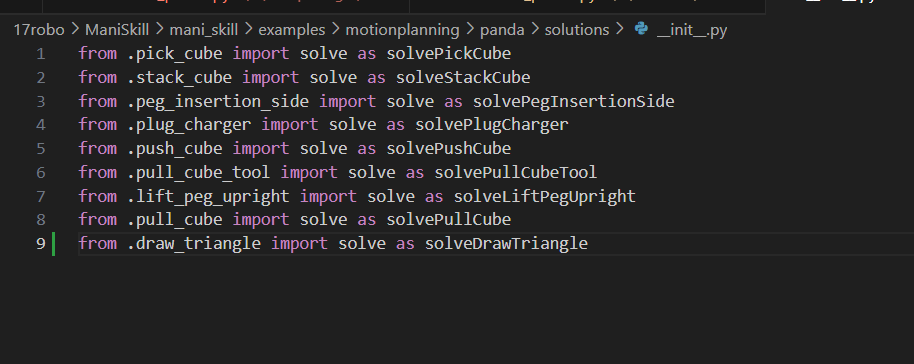

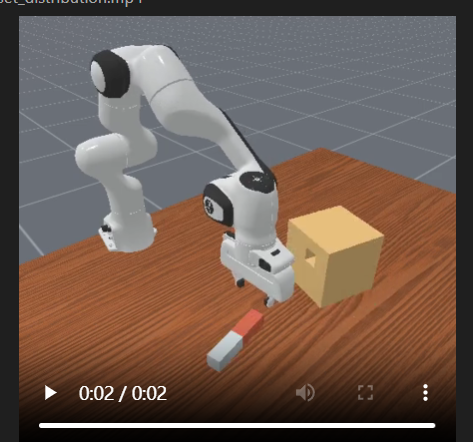

python -m mani_skill.examples.motionplanning.panda.run -e “PickCube-v1” # runs headless and only saves video python -m mani_skill.examples.motionplanning.panda.run -e “StackCube-v1” --vis # opens up the GUI python -m mani_skill.examples.motionplanning.panda.run -h # open up a help menu and also show what tasks have solutions

(dl) kewei@sxy-gpus3090:~/Desktop$ python -m mani_skill.examples.motionplanning.panda.run -h # open up a help menu and also show what tasks have solutions usage: run.py [-h] [-e ENV_ID] [-o OBS_MODE] [-n NUM_TRAJ] [–only-count-success] [–reward-mode REWARD_MODE] [-b SIM_BACKEND] [–render-mode RENDER_MODE] [–vis] [–save-video] [–traj-name TRAJ_NAME] [–shader SHADER] [–record-dir RECORD_DIR] [–num-procs NUM_PROCS]

optional arguments: -h, --help show this help message and exit -e ENV_ID, --env-id ENV_ID Environment to run motion planning solver on. Available options are [‘DrawTriangle-v1’, ‘PickCube-v1’, ‘StackCube-v1’, ‘PegInsertionSide-v1’, ‘PlugCharger-v1’, ‘PushCube-v1’, ‘PullCubeTool-v1’, ‘LiftPegUpright-v1’, ‘PullCube-v1’] -o OBS_MODE, --obs-mode OBS_MODE Observation mode to use. Usually this is kept as ‘none’ as observations are not necesary to be stored, they can be replayed later via the mani_skill.trajectory.replay_trajectory script. -n NUM_TRAJ, --num-traj NUM_TRAJ Number of trajectories to generate. –only-count-success If true, generates trajectories until num_traj of them are successful and only saves the successful trajectories/videos –reward-mode REWARD_MODE -b SIM_BACKEND, --sim-backend SIM_BACKEND Which simulation backend to use. Can be ‘auto’, ‘cpu’, ‘gpu’ –render-mode RENDER_MODE can be ‘sensors’ or ‘rgb_array’ which only affect what is saved to videos –vis whether or not to open a GUI to visualize the solution live –save-video whether or not to save videos locally –traj-name TRAJ_NAME The name of the trajectory .h5 file that will be created. –shader SHADER Change shader used for rendering. Default is ‘default’ which is very fast. Can also be ‘rt’ for ray tracing and generating photo-realistic renders. Can also be ‘rt-fast’ for a faster but lower quality ray-traced renderer –record-dir RECORD_DIR where to save the recorded trajectories –num-procs NUM_PROCS Number of processes to use to help parallelize the trajectory replay process. This uses CPU multiprocessing and only works with the CPU simulation backend at the moment.

Real2Sim 评估#

ManiSkill3 支持通过 GPU 模拟 + 渲染 RT-1 和 Octo 等策略进行极快的 real2sim 评估。有关支持哪些环境的详细信息，请参阅此页面。要运行 RT-1 和 Octo 的推理，请参阅SimplerEnv 项目maniskill3的分支。

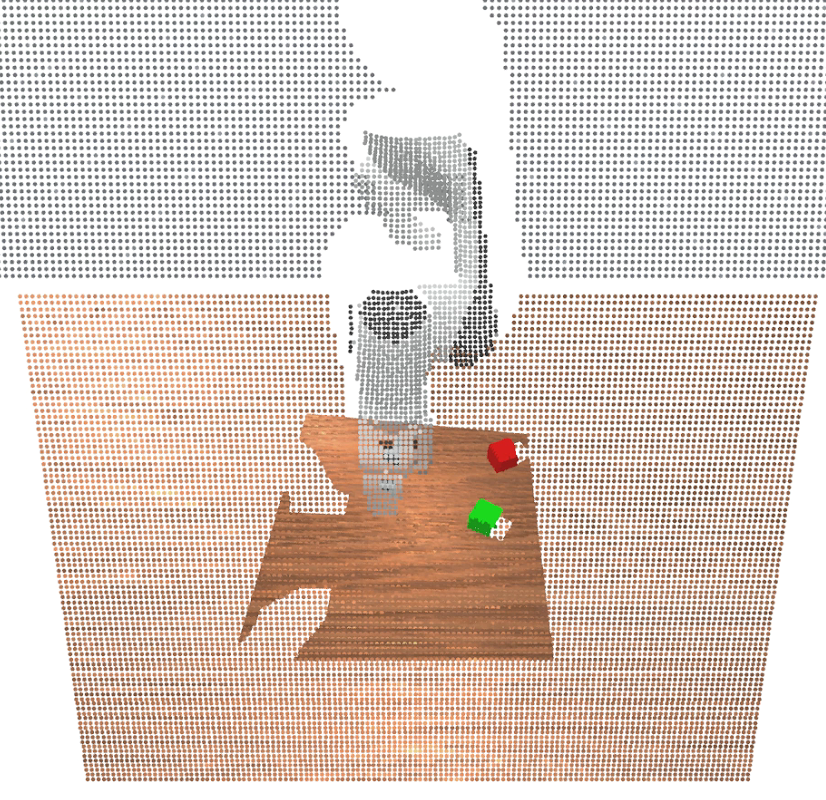

可视化点云数据

可以运行以下命令来可视化点云观测结果（需要显示器才能工作）

pip install “pyglet<2” # make sure to install this dependency python -m mani_skill.examples.demo_vis_pcd -e “StackCube-v1”

/home/kewei/17robo/ManiSkill/mani_skill/examples/demo_vis_pcd.py 这个文件也要改

在 demo_vis_pcd.py 的第 46 行：

pcd = trimesh.points.PointCloud(xyz, colors)

你需要在 xyz 和 colors 变量上 调用 .cpu().numpy() 来确保它们是 CPU 上的 NumPy 数组，而不是 GPU Tensor。

修改代码：

pcd = trimesh.points.PointCloud(xyz.cpu().numpy(), colors.cpu().numpy())

可视化分割数据#

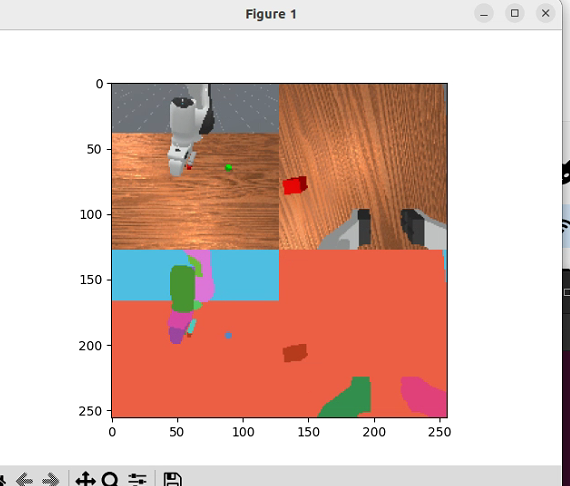

可以运行以下命令来可视化分段数据

python -m mani_skill.examples.demo_vis_segmentation -e “StackCube-v1” python -m mani_skill.examples.demo_vis_segmentation -e “StackCube-v1”
–id id_of_part # mask out everything but the selected part

这一句命令目前还有报错

Visualizing 2 RGBD cameras ID to Actor/Link name mappings 0: Background 1: Link, name - panda_link0 2: Link, name - panda_link1 3: Link, name - panda_link2 4: Link, name - panda_link3 5: Link, name - panda_link4 6: Link, name - panda_link5 7: Link, name - panda_link6 8: Link, name - panda_link7 9: Link, name - panda_link8 10: Link, name - panda_hand 11: Link, name - panda_hand_tcp 12: Link, name - panda_leftfinger 13: Link, name - panda_rightfinger 14: Link, name - camera_base_link 15: Link, name - camera_link 16: Actor, name - table-workspace 17: Actor, name - ground 18: Actor, name - cubeA 19: Actor, name - cubeB Traceback (most recent call last): File “/home/kewei/micromamba/envs/dl/lib/python3.9/runpy.py”, line 197, in _run_module_as_main return _run_code(code, main_globals, None, File “/home/kewei/micromamba/envs/dl/lib/python3.9/runpy.py”, line 87, in _run_code exec(code, run_globals) File “/home/kewei/17robo/ManiSkill/mani_skill/examples/demo_vis_segmentation.py”, line 144, in main(parse_args()) File “/home/kewei/17robo/ManiSkill/mani_skill/examples/demo_vis_segmentation.py”, line 118, in main selected_id = reverse_seg_id_map[selected_id] KeyError: ‘id_of_part’

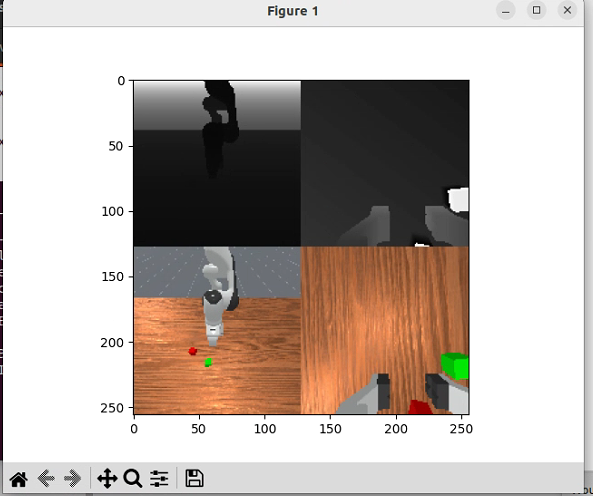

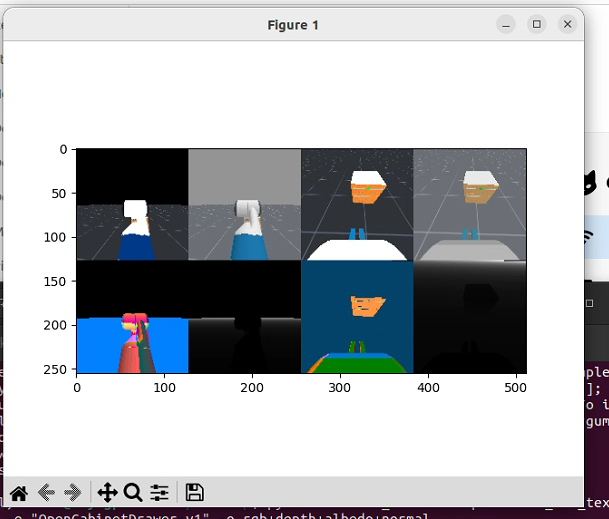

可视化相机纹理（RGB、深度、反照率等）#

可以运行以下命令来可视化相机生成的任意数量的纹理。请注意，默认情况下使用的着色器是“默认”着色器，它输出可能需要的几乎所有纹理。请参阅相机和着色器页面

python -m mani_skill.examples.demo_vis_textures -e “StackCube-v1” -o rgb+depth python -m mani_skill.examples.demo_vis_textures -e “OpenCabinetDrawer-v1” -o rgb+depth+albedo+normal
